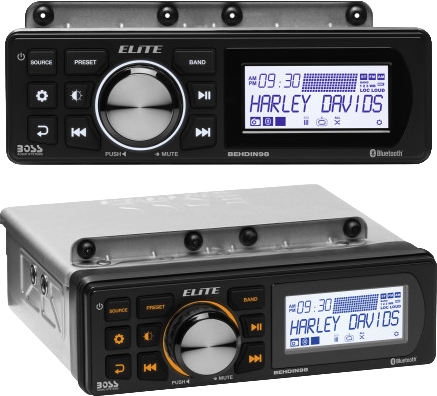

Boss Audio Bt Reciever Plug & Play Flh/Flt `98-13 - 63-8049

Bt Reciever Plug & Play Flh/Flt `98-13

Features:

• Features
• • Bluetooth® Audio
• • 3" Monochrome LCD Display
• • AM/FM Receiver with 18 FM/12 AM Presets
• • Plug and Play for Easy Installation
• • Switchable US & EU Tuner Frequencies
• • Zero Current Draw Memory (Retains memory if power is disconnected)
• • Selectable Amber or White Button Illumination
• • Three Variable Brightness Display and Button Modes
• • Retains Factory Handlebar Audio Controls*
• • IPX6-Rated Front Panel (Weather-Resistant / Dustproof) / IPX4-Rated Chassis
• • Conformal Coated PCB
• • UV Protected Front Panel
• • ZAM® Coated Corrosion-Resistant Steel Chassis
• • Amplifier Class A/B (2 Ohm Stable)
• • Max Power: 72W x 4 @ 2 Ohms / 48W x 4 @ 4 Ohms
• • Operation Voltage: 9.6V – 14.4V DC
• • INPUTS & OUTPUTS:
• • Aux In (3.5mm)
• • Rear USB Port: Media & 1.5A Charging
• • Front L/R Pre-Amp Outputs (2V)
• • Factory OEM Rear Speaker Output, True Plug and Play**
• • COMPATIBILITY: Direct fit for 1998-2013 Harley-Davidson®** Electra Glide®, Street Glide® and Road Glide® Models
• • * Requires factory wiring harness and connectors to retain functionality.
• • **Not compatible with factory amplified systems, intercom, CB, rear volume controls, 1998-2005 Ultra rear speakers, and factory equipped satellite radio systems.

PLAYBACK

MP3/WMA

• Bluetooth® Audio Streaming Stream and Control your Favorite Music APPs
