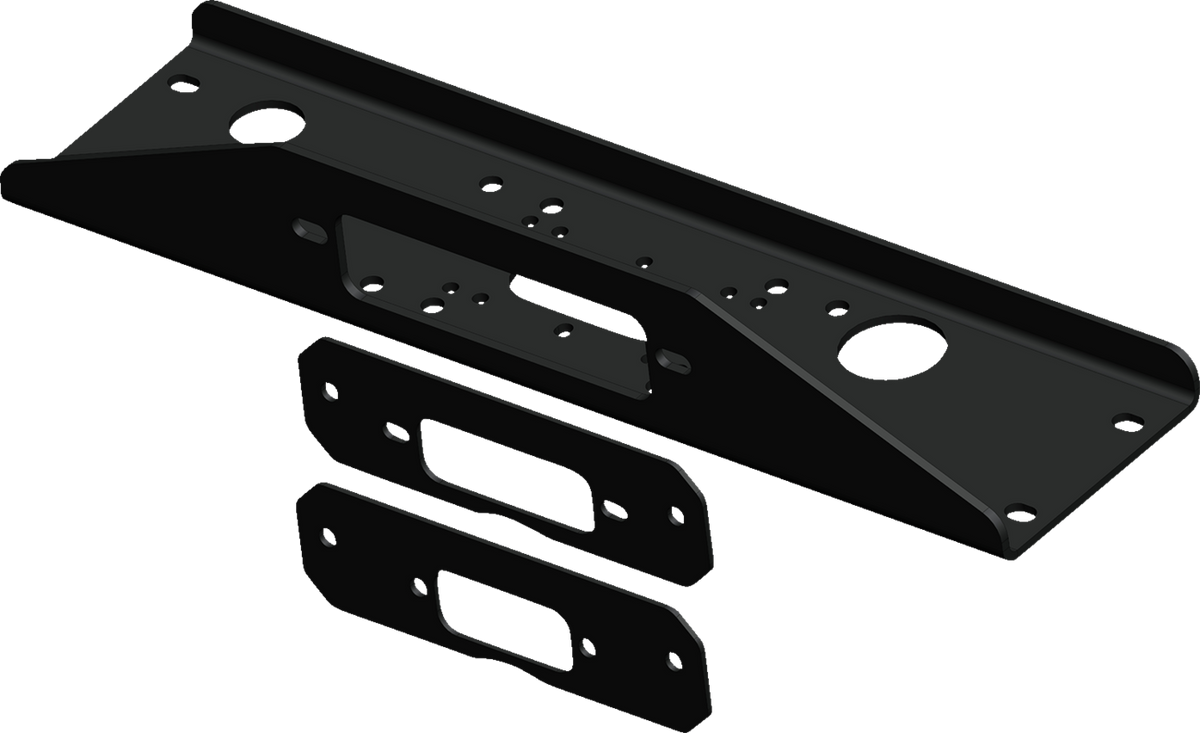

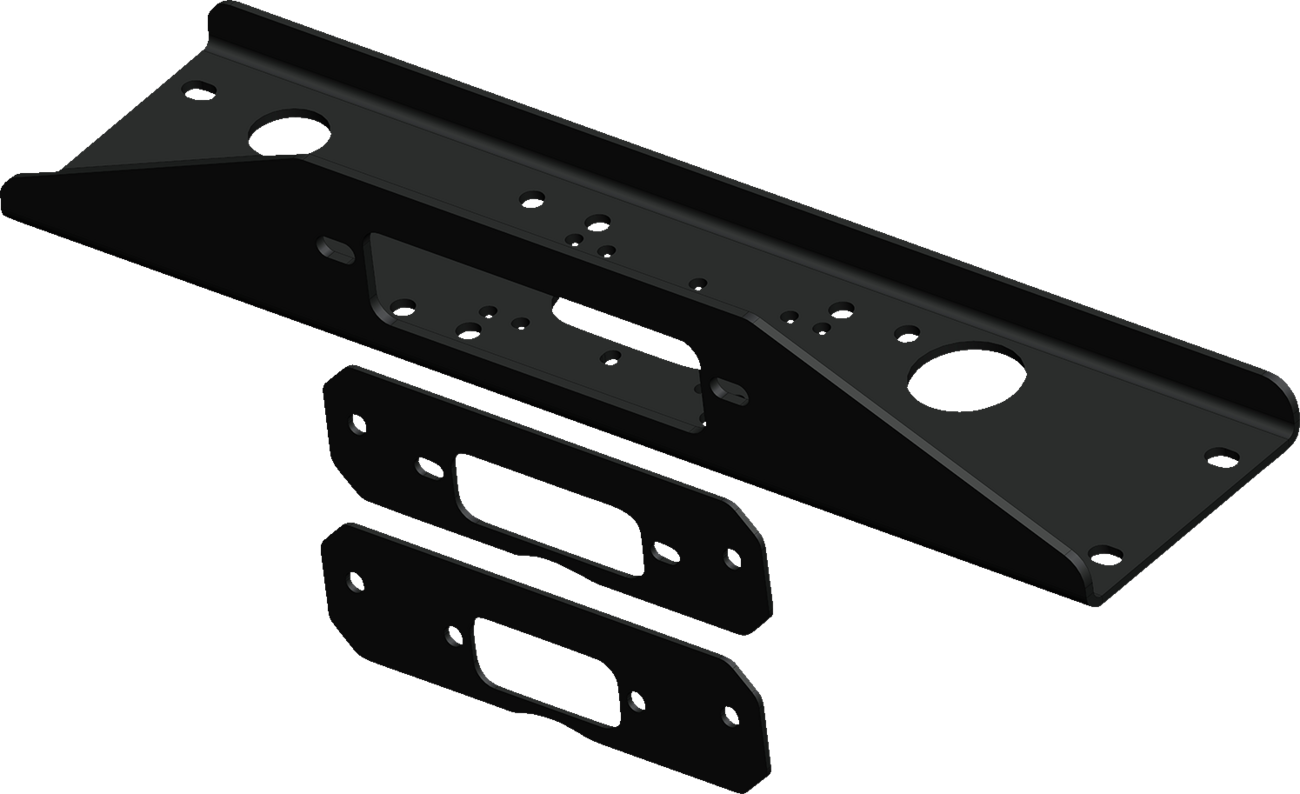

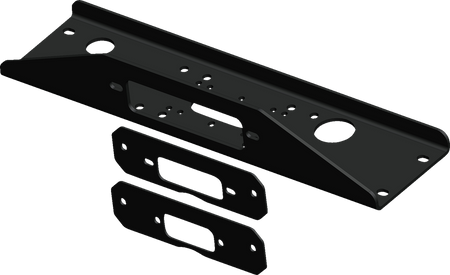

Winch Mount - Roxor

Constructed of 1/4" grade 50 steel. Mounts are metal bead blasted before powder coated for the best possible finish prep and durability. Very easy to install. Complete installation instructions included. 100% made in the USA. Designed to work with the following winches:. All 2-hole mounted winches with a bolt pattern of 3.100" and a roller with 4.875" bolt up pattern. All standard 4-hole mounted winches with a bolt pattern of 3.00 x 4.875" and a roller with 4.875" bolt up pattern. All wide 4-hole mounted winches with a bolt pattern of 4.50 x 10.00" and a roller with 6.00" bolt up pattern. Most truck winches with a bolt pattern of 4.50 x 6.50" or 4.5 x 10.00" and with a roller with 10.00-11.00" bolt up pattern. Roller fairlead and winch not included.. Wiring a winch to the ROXOR may require some additional wiring to wire into the system; this kit only includes the metal brackets and hardware to mount it to your ROXOR..
